Width of Cut
|
No. of Blades
|
Disc Spacing
|
No. of Gangs
|
Min. Req. HP*
|
Approx. Weight
|
6’
|
16
|
9-1/2
|
2
|
85 FWD
|
2800
|
7’
|
16
|
11
|
2
|
95 FWD
|
2825
|
7’6”
|
20
|
9-1/2
|
4
|
115 FWD
|
3100
|
9’
|
20/24
|
9-1/2, 11
|
4
|
120 FWD
|
3100/3300
|
10’6”
|
24/28
|
9-1/2, 11
|
4
|
140 FWD
|
3400/3500
|
|
STANDARD EQUIPMENT
• 1-5/8” Alloy Steel Axles
• Heavy-duty Roller Bearings
• 24” x 1/4” Notched Discs
• Adjustable Cutting Angle
• Heavy-duty Disc Scrapers
OPTIONAL EQUIPMENT
• 24” x 5/16” Notched Discs
• 26” x 1/4” Notched Discs
• 26” x 5/16” Notched Discs
• T-1 Bearing Wear Plates
• Oil Bath Bearings
FEATURES
• FRAME
Constructed from 4” x 6” x 3/8” and
4” x 4” x 3/8” rectangular tubing.
Reinforced with welded gussets to
resist twisting and bending.
• GANGS
3” x 6” x 3/8” Tubular gang carriers
provide rigid support for gang
components.
• AXLES
Made from 1-5/8” Round Alloy Steel
to Provide Strength and Durability.
• ANGLE OF CUT
Adjustments from 5º to 21º are Fast
and Easy.
• BEARINGS
Heavy-duty Roller Bearing
Assemblies.
Oliver & Dahlman Equipment Co. reserves the right to change the
design, material and specifications of its products without notice.
Illustrations may include optional equipment and accessories, and
may not include all standard equipment.

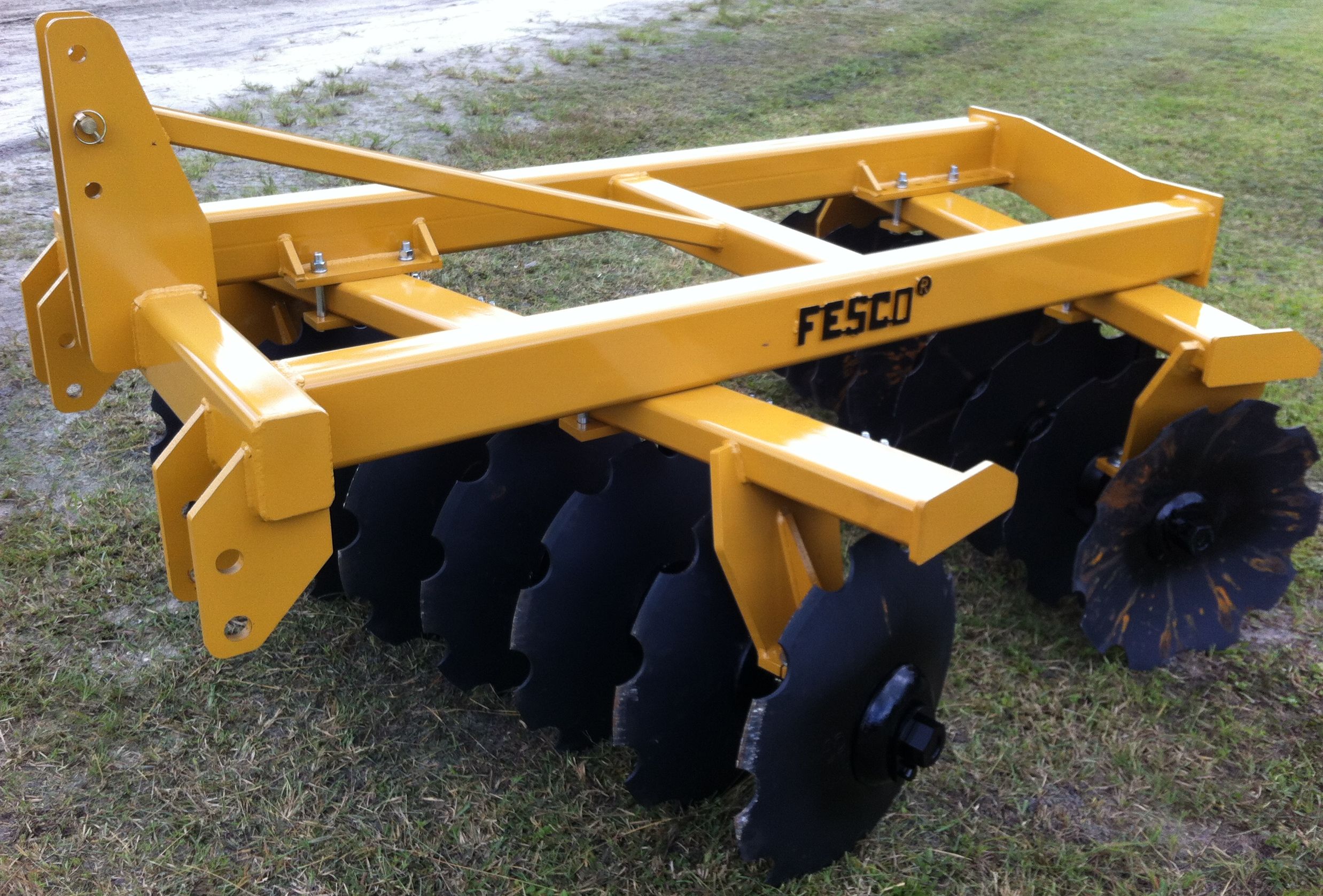

SERIES TOLH OFFSET LIFT HARROW
|
* Approximate HP, to be used only as a guide. Extremely hard,
soft, or boggy conditions will change these figures.
